THERMACORE® 5740/194 SERIES



Our Thermacore® series steel garage door is our premium insulated garage door. It has a solid steel frame with sprayed in polyurethane insulation which gives it a R-value of 12.76. It has a ribbed back for extra strength and it comes in 12 different color, 5 different panel designs and a wide variety of window options that give you the design features you are looking for.
Panel Styles
Renderings below are for 8' wide and 7' high

Short Panels

Long Panels

V-Grooved Short Panels

V-Grooved Long Panels

Flush
Construction

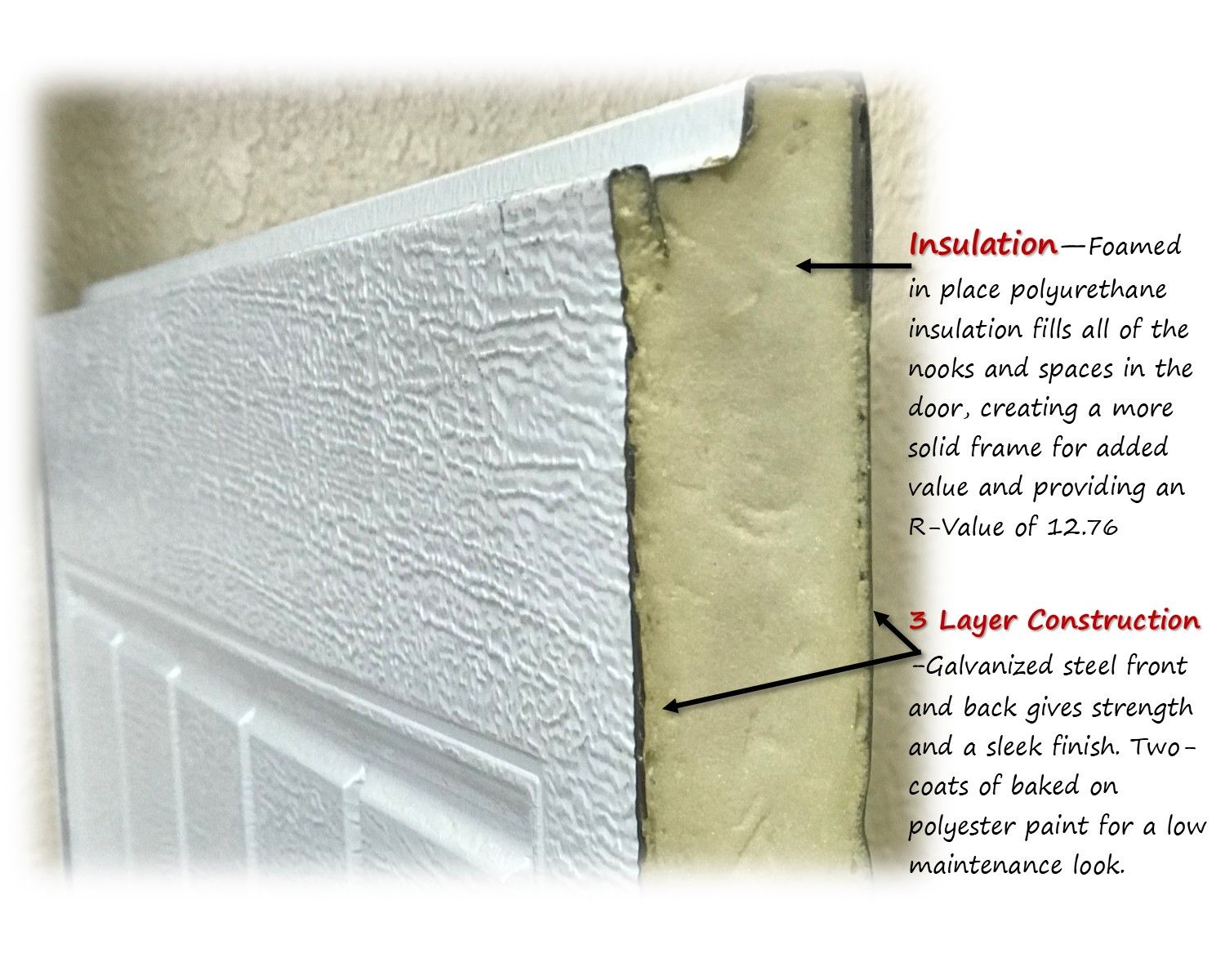

3 Layer Construction with a polyurethane foamed in place insulation to provide the highest R-Value.
Available in 1 3/8" or 2" thickness with rubber seals in between each section.

Colors

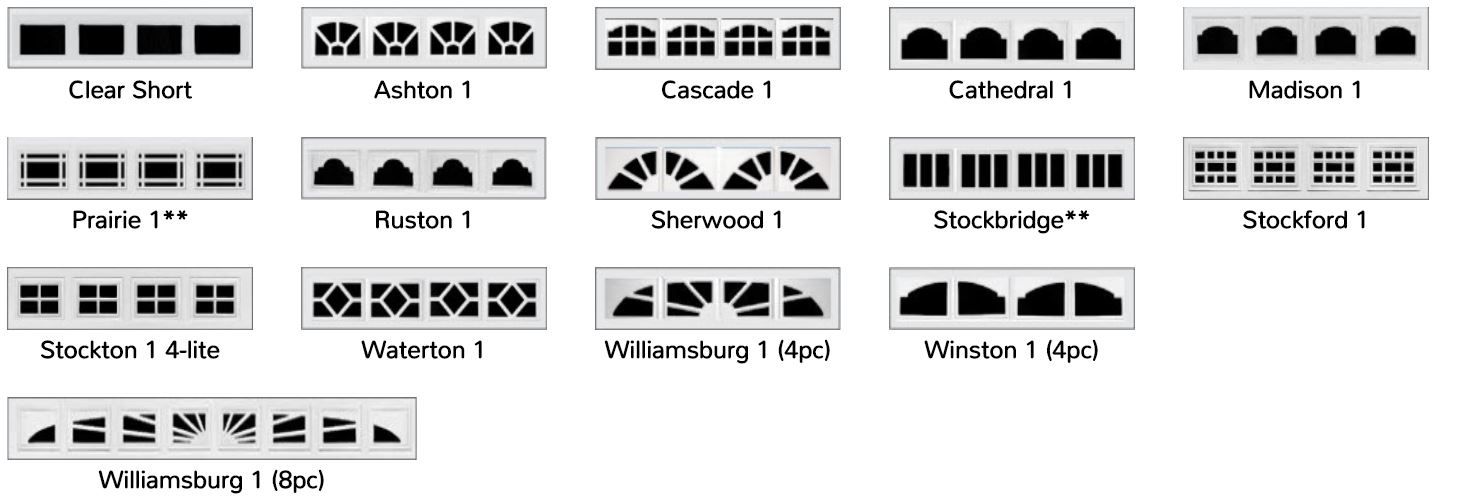

Window Designs


Glass Options
Glass to be 1/2" double pane. Tempered available upon request.

**Clear Glass

Satin Etched Privacy Glass

Obscure Glass
Documents
Additional Insulated Steel DoorsTRADITIONAL STEEL® 180 & 390 SERIES DOOR
390 SERIES STEEL BACKED INSULATED DOOR
Our 390 series steel garage door is a steel framed insulated garage door. It has a solid steel front and back frame with poly-styrene sheets of insulation set in place. This door has a R-value of 9.8. It comes in 5 different colors, 2 different panel designs and a wide variety of window options that give you the design features you are looking for.
180 SERIES VINYL BACKED INSULATED DOOR
Our 180 series steel garage door is a vinyl backed insulated garage door. It has a solid steel frame with polystyrene sheets of insulation set in place. This door has an R-value of 7.4. It comes in 5 different colors, 3 different panel designs and a wide variety of window options that give you the design feature you are looking for.
Panel Styles
Renderings below are for 8' wide and 7' high. Doors available in sizes up to 16' wide with stamp designs varying accordingly.

Short Panels

Long Panels

V-Grooved Short Panels
Construction

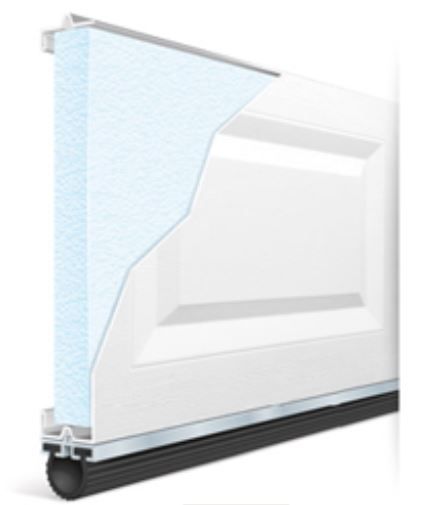

3 Layer Construction with a sheet of 2" polystyrene insulation to provide R-Values of 7.4 & 9.8. 390 series is an added sheet of steel on backside to give finished look and more durability.

Colors

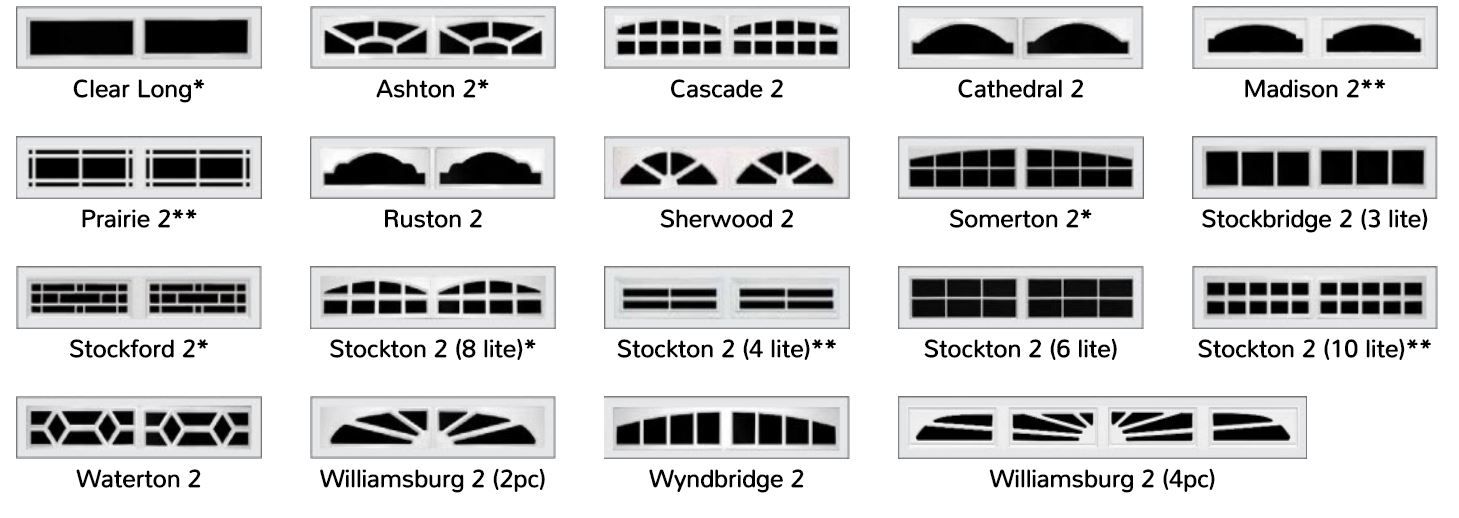

Window Designs


Glass Options
Glass to be 1/2" double pane. Tempered available upon request.

**Clear Glass

Satin Etched Privacy Glass

Obscure Glass
